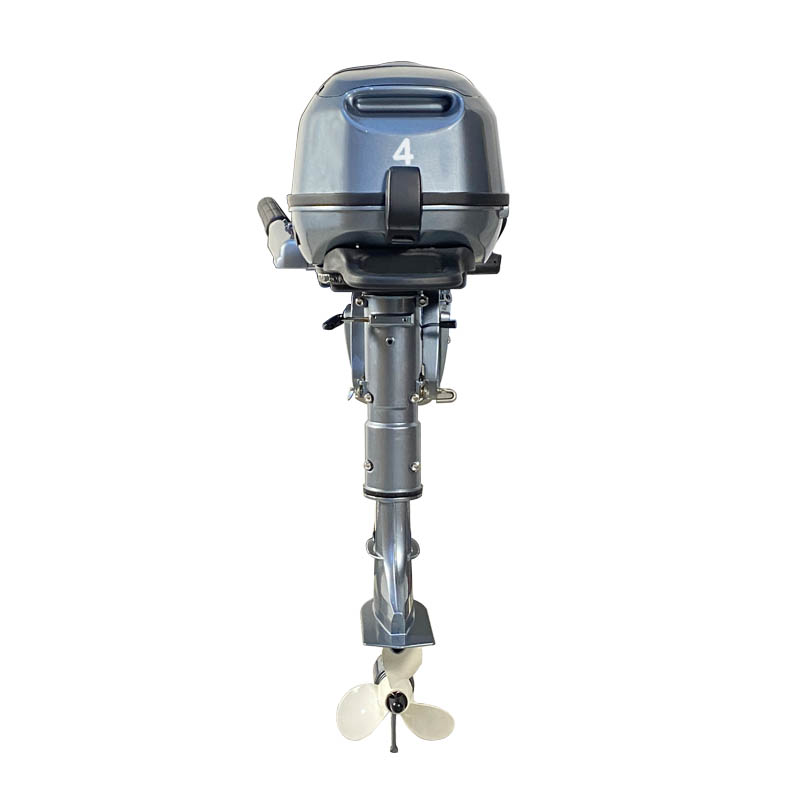

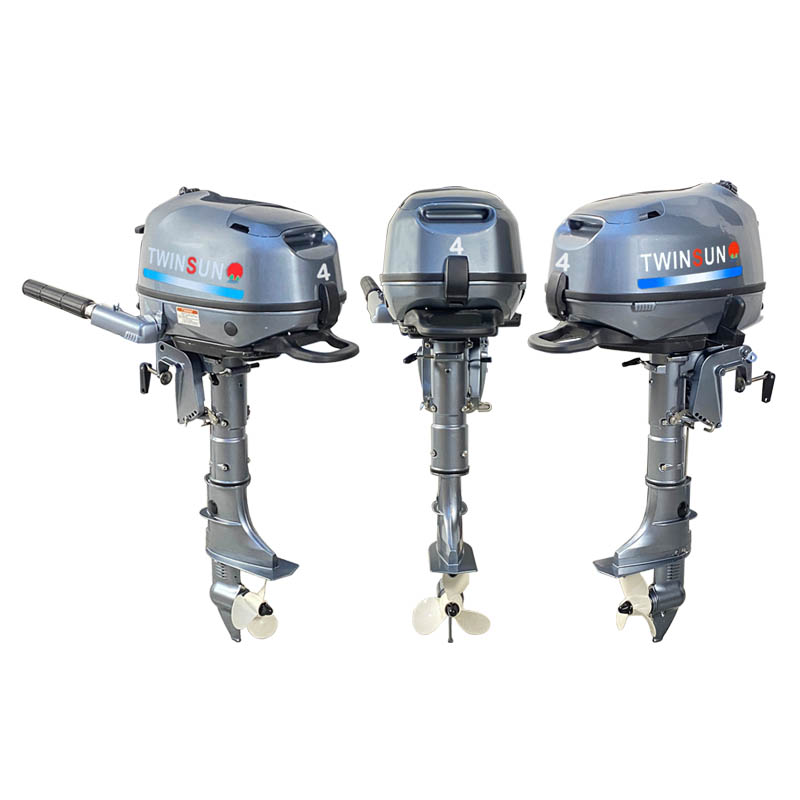

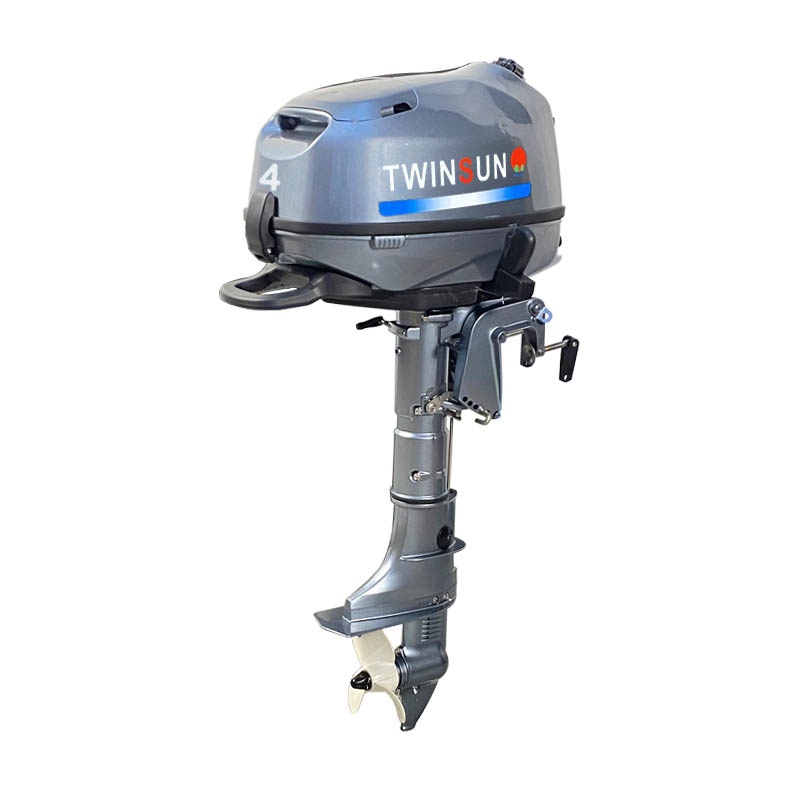

| Model: F4BMS (4hp 4 stroke) | ||
| Overall length | mm(in.) | 680(26.8) |
| Overall width | mm(in.) | 325(15.8) |
| Overall heigth | mm(in.) | 1073(42.2) |
| Transom heigh | mm(in.) | 435(17.1) |
| Weight | kg | 27-28 |
| Full throttle operating range | r/min | 4500-5500 |
| Maximum output:kw(HP)@r/min | 2.9(4)@4500 | |
| Idling speed (in neutral) | r/min | 1250-1350 |
| Engine type | OHV | |
| Cylinders | 1 | |
| Displacement | cm³ | 139 |
| Bore x stroke | mm(in.) | 62x46(2.44x1.81) |
| Ignition system | TCI | |
| Control system | Tiller | |
| Starting system | Manual Start | |
| Gear positions | Forward-neutral-reverse | |
| Gear ratio | 2.15(28/13) | |
| Trim and tilt system | Nanual tilt | |
| Integral fuel tank capicity | L | 1.1 |
| Optional Separate fuel tank capicity | L | 12 |
| Maximum fuel waste | L/h | 1.3 |
| Engine oilcapacity/withoutoilfilter | L | 0.6 |
| Gear oil capacity | ML | 100 |
| Propeller options* | in | 3x7 4/5"x8" |
