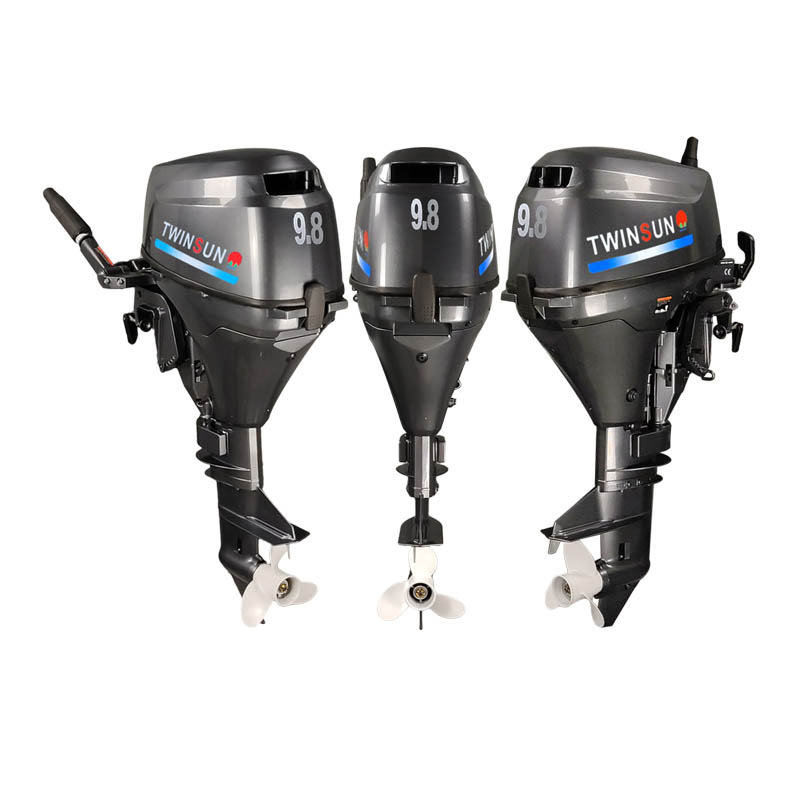

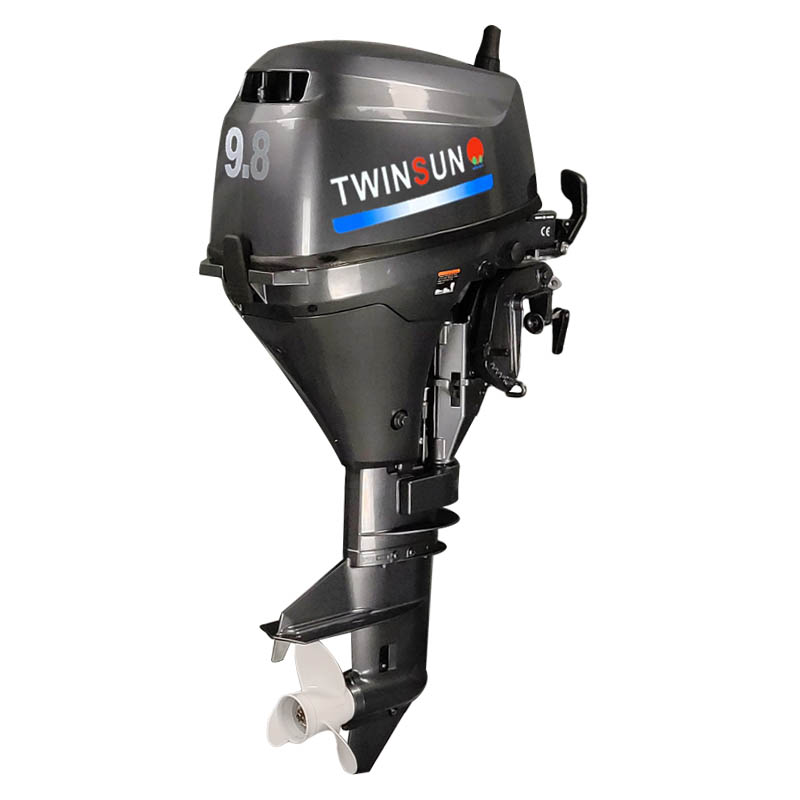

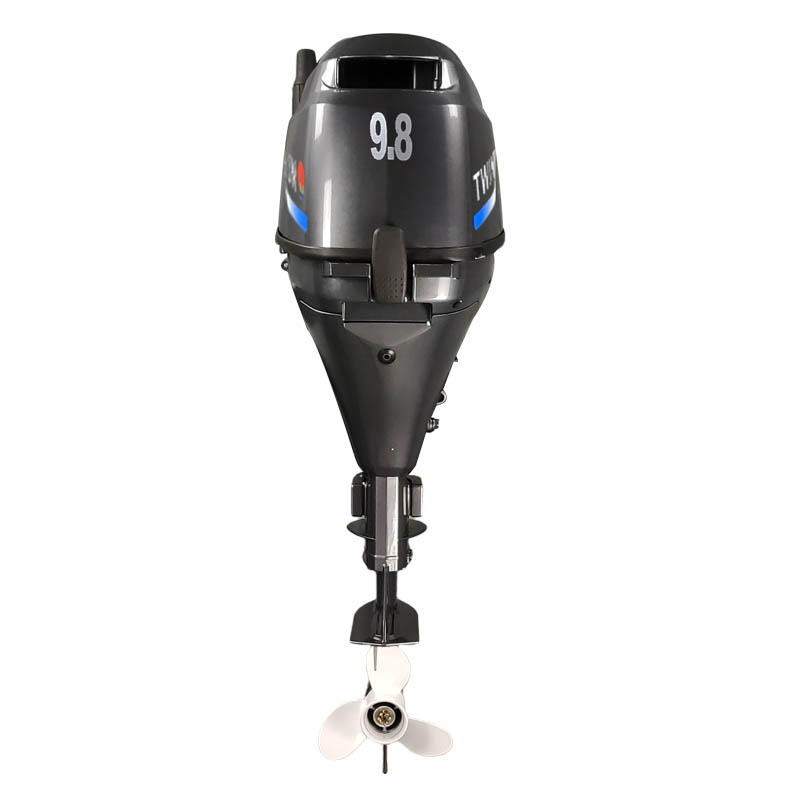

Outboard motor 4 stroke

9.8HP outboard engine 4stroke

Model: F9.8BMS (9.8hp 4 stroke) (Short Shaft)

Overall length	mm(in.)	806(26.8)
Overall width	mm(in.)	325(15.8)
Overall heigth	mm(in.)	1073(42.2)
Transom heigh	mm(in.)	435(17.1)
Weight	kg	37
Full throttle operating range	r/min	5000-6000
Maximum output:kw(HP)@r/min		7.2(9.8)@6000
Idling speed (in neutral)	r/min	900-1100
Engine type		OHV
Cylinders		2
Displacement	cm³	209
Bore x stroke	mm(in.)	55x44(2.17x1.73)
Ignition system		TCI
Control system		Tiller or Remote
Starting system		Manual or Electric
Gear positions		Forward-neutral-reverse
Gear ratio		2.08：1
Trim and tilt system		Nanual tilt
Integral fuel tank capicity	L	/
Optional Separate fuel tank capicity	L	12
Maximum fuel waste	L/h	2.3
Engine oilcapacity/withoutoilfilter	L	0.8
Gear oil capacity	ML	220
Propeller options*	in	3x7 4/5"x9"
