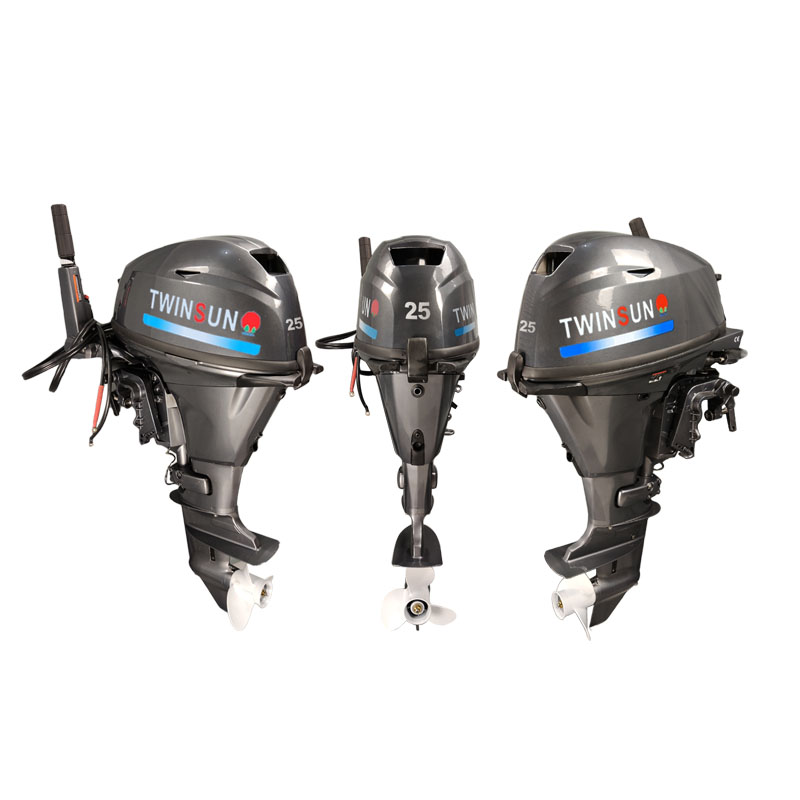

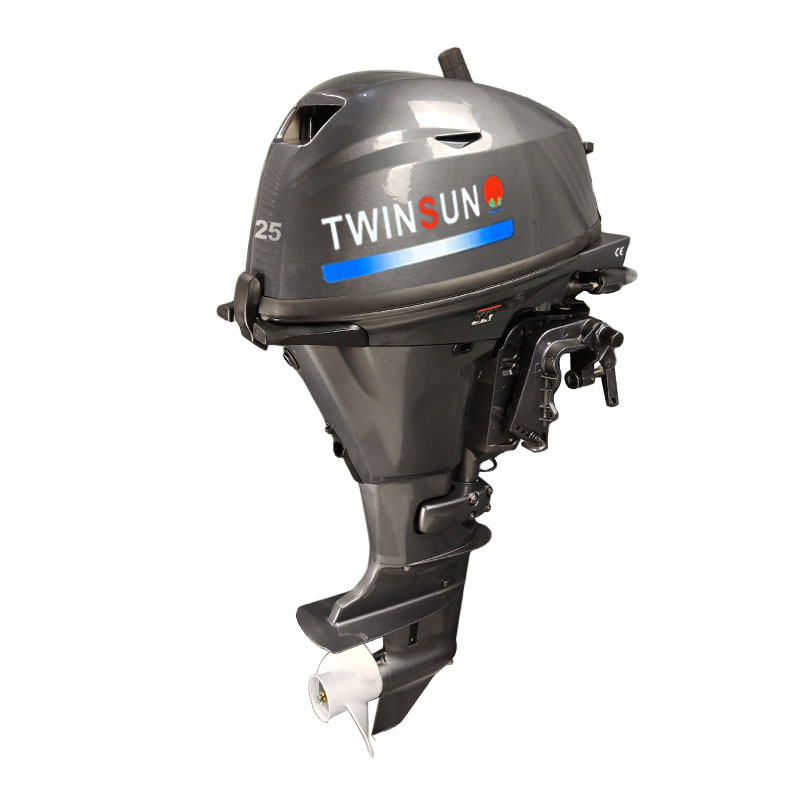

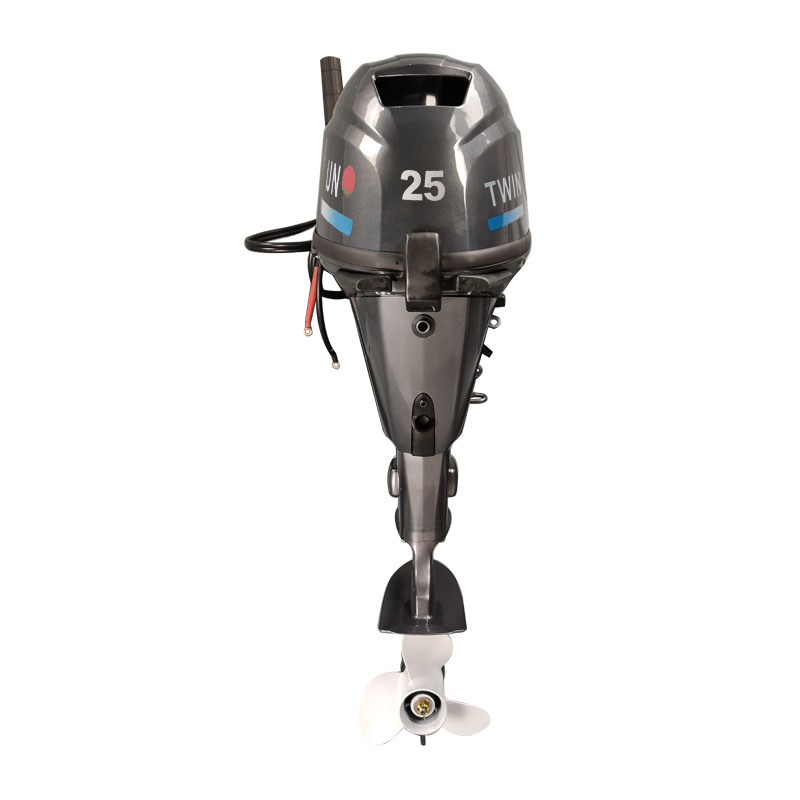

Outboard motor 4 stroke

25HP outboard engine 4stroke

Model: F25BES Electric Start (25hp 4 stroke) (Short Shaft)

Overall length	mm(in.)	1048(41.3)
Overall width	mm(in.)	420(16.5)
Overall heigth	mm(in.)	1080(42.5)
Transom heigh	mm(in.)	440(17.3)
Weight	kg	52
Full throttle operating range	r/min	4500-5500
Maximum output:kw(HP)@r/min		18.4(25)@5500
Idling speed (in neutral)	r/min	900-1000
Engine type		OHC
Cylinders		2
Displacement	cm³	387
Bore x stroke	mm(in.)	65x75(2.62x2.92)
Ignition system		CDI
Control system		Tiller
Starting system		Manual and Electric
Gear positions		Forward-neutral-reverse
Gear ratio		2.08(27/13)
Trim and tilt system		Nanual tilt
Integral fuel tank capicity	L	/
Optional Separate fuel tank capicity	L	24
Maximum fuel waste	L/h	4.7
Engine oilcapacity/withoutoilfilter	L	1.8
Gear oil capacity	ML	250
Propeller options*	in	3x9 1/4"x11"
