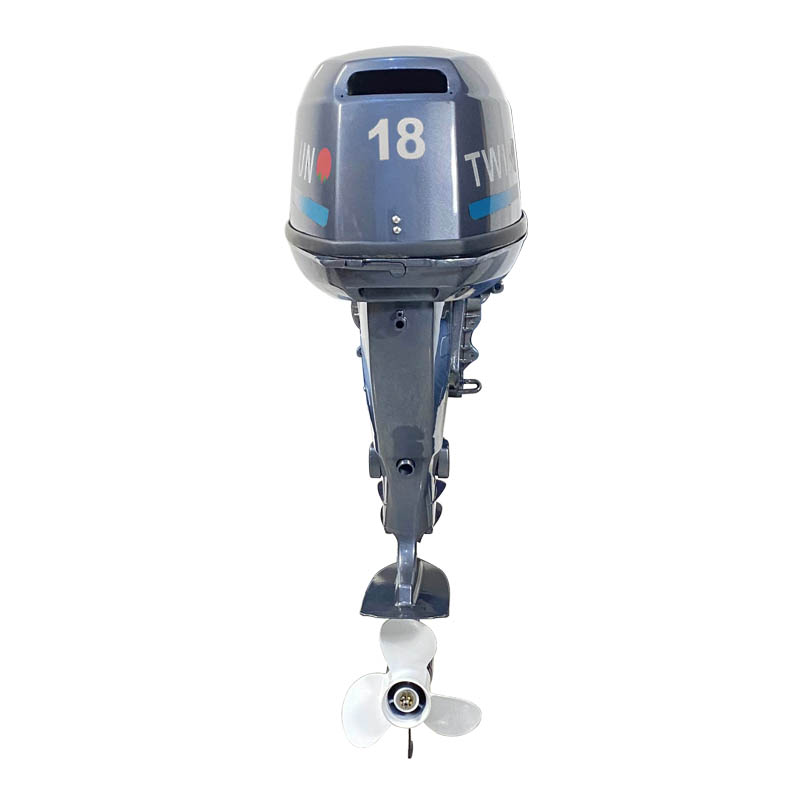

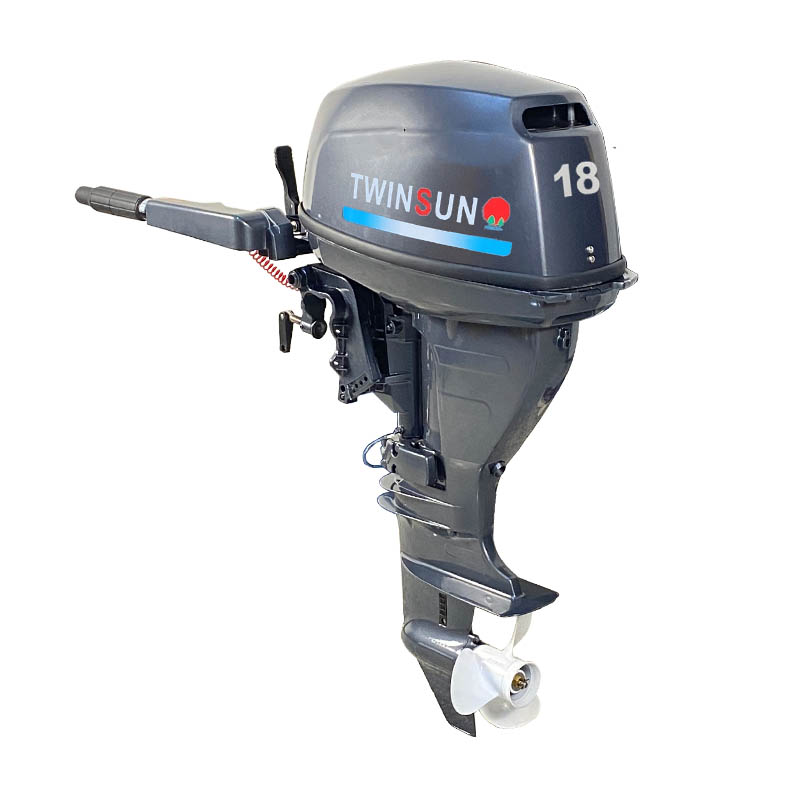

Model: F18BMS (18hp 4 stroke) (Short Shaft)
| Overall length | mm(in.) | 1001(39.4) |
| Overall width | mm(in.) | 427(16.8) |
| Overall heigth | mm(in.) | 1207(47.5) |
| Transom heigh | mm(in.) | 440(17.3) |
| Weight | kg | 49.5 |
| Full throttle operating range | r/min | 4500-5500 |
| Maximum output:kw(HP)@r/min | 12.3(18)@5000 | |
| Idling speed (in neutral) | r/min | 900-1000 |
| Engine type | OHC | |
| Cylinders | 2 | |
| Displacement | cm³ | 323 |
| Bore x stroke | mm(in.) | 59x59(2.32x2.32) |
| Ignition system | CDI | |
| Control system | Tiller | |
| Starting system | Manual | |
| Gear positions | Forward-neutral-reverse | |
| Gear ratio | 2.08(27/13) | |
| Trim and tilt system | Nanual tilt | |
| Integral fuel tank capicity | L | / |
| Optional Separate fuel tank capicity | L | 24 |
| Maximum fuel waste | L/h | 3.7 |
| Engine oilcapacity/withoutoilfilter | L | 1 |
| Gear oil capacity | ML | 250 |
| Propeller options* | in | 3x9 1/4"x10" |
